The Franklin Engine - Tender Radial Buffer

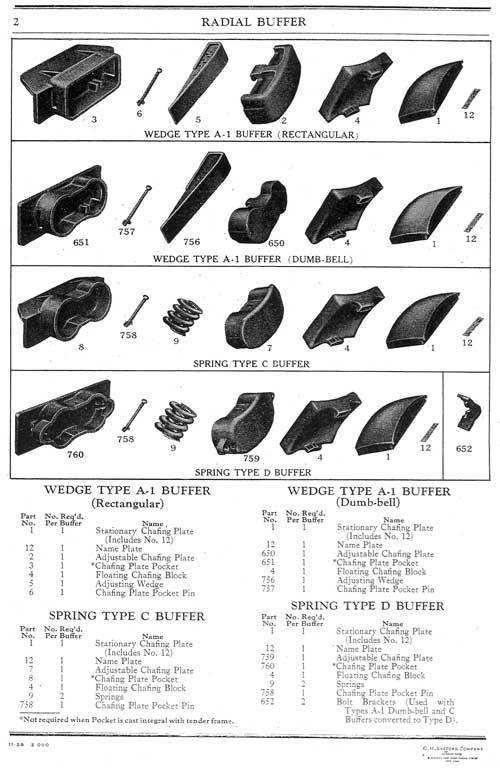

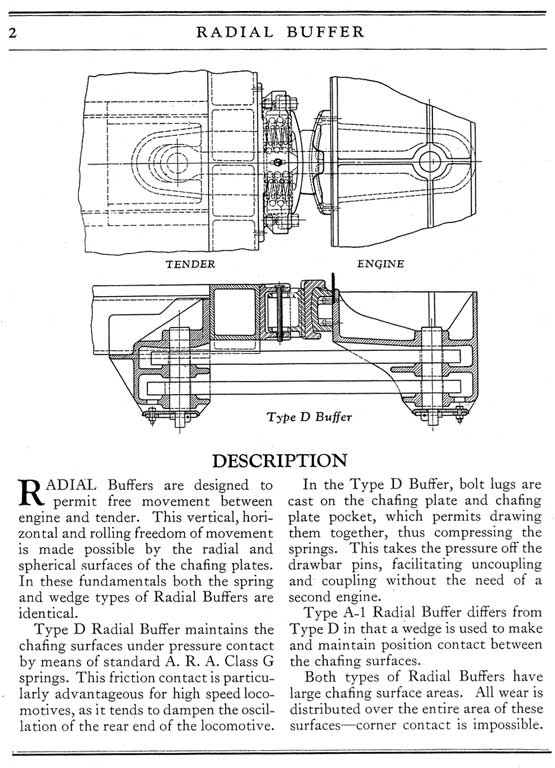

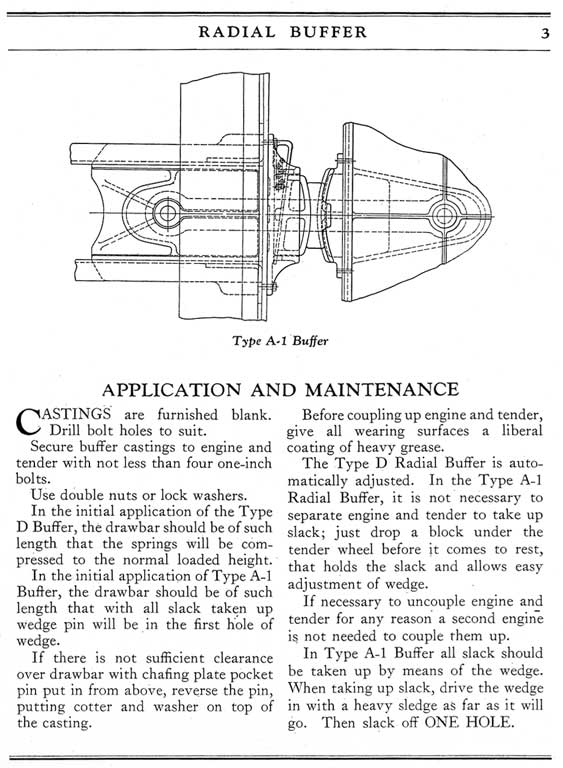

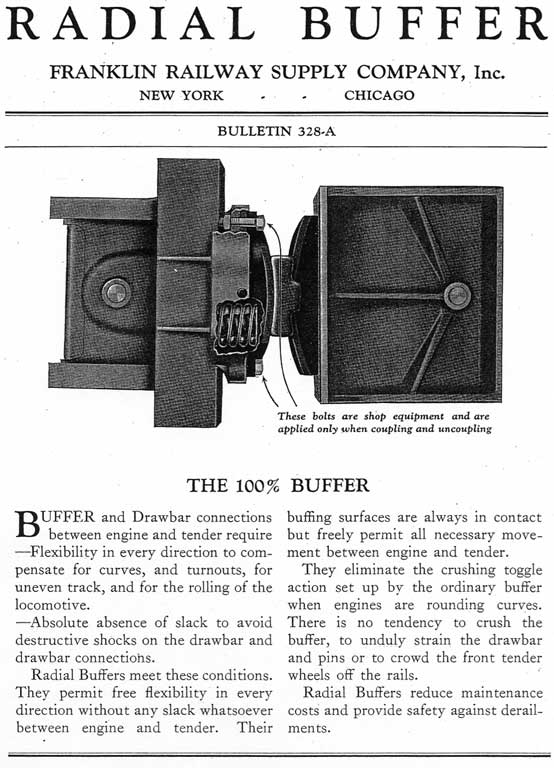

My thanks to Dan Myers in the USA for supplying this information.

And, as also shown elsewhere on this site, an example of a locomotive which was fitted with the radial buffer:

The radial buffer was used on the PRR Class S1 6-4-4-6 Duplex
