WCR R Class Draughting Modifications

Close Window

R711 takes oil at Warrnambool. This view clearly shows the dobule Lempor chimneys. September 2001.

R711 takes oil at Warrnambool. This view clearly shows the dobule Lempor chimneys. September 2001.

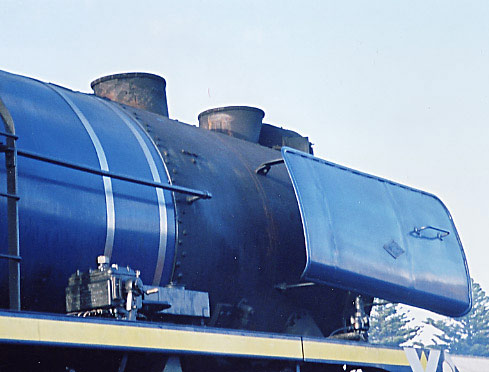

The double Lempor chimneys. September 2001.

The double Lempor chimneys. September 2001.

Inside the smokebox of R766. May 2001.

Inside the smokebox of R766. May 2001.

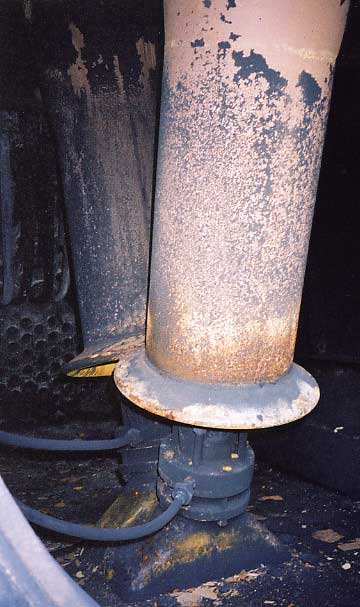

Inside the smokebox of R766 clearly showing the converging/diverging arrangement of the Lempor blast pipes. May 2001.

Inside the smokebox of R766 clearly showing the converging/diverging arrangement of the Lempor blast pipes. May 2001.

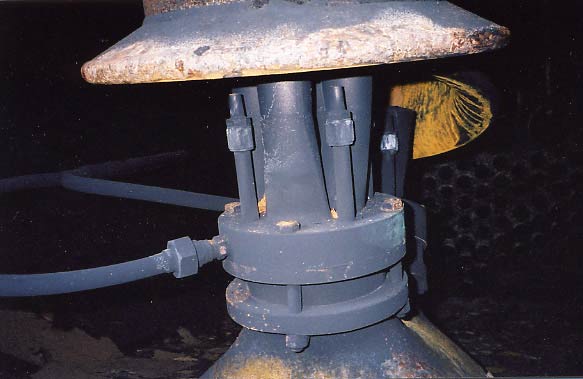

Inside the smokebox of R766 showing the exhaust nozzles & blower arrangement. May 2001.

Inside the smokebox of R766 showing the exhaust nozzles & blower arrangement. May 2001.

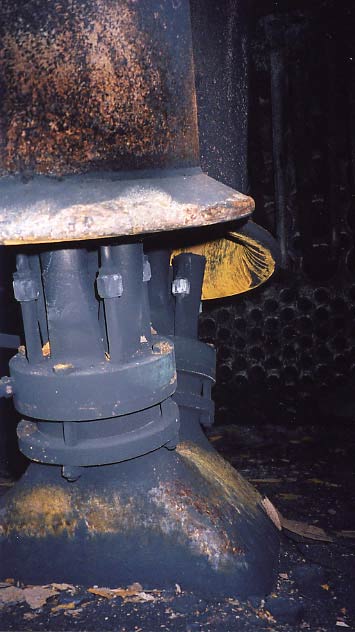

Inside the smokebox of R766 showing the exhaust nozzles & blower arrangement. May 2001.

Inside the smokebox of R766 showing the exhaust nozzles & blower arrangement. May 2001.

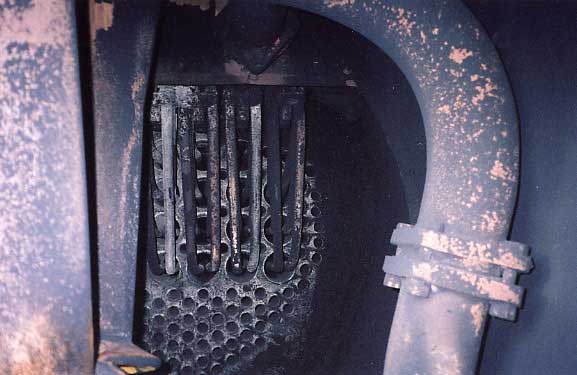

Inside the smokebox of R766 looking past the blast pipes to the smokbox tubeplate and the superheater elements.

Inside the smokebox of R766 looking past the blast pipes to the smokbox tubeplate and the superheater elements.
May 2001.
